Mitsubishi Ducted Air Handlers in West Covina, CA

Why do West Covina homes choose ducted Mitsubishi units?

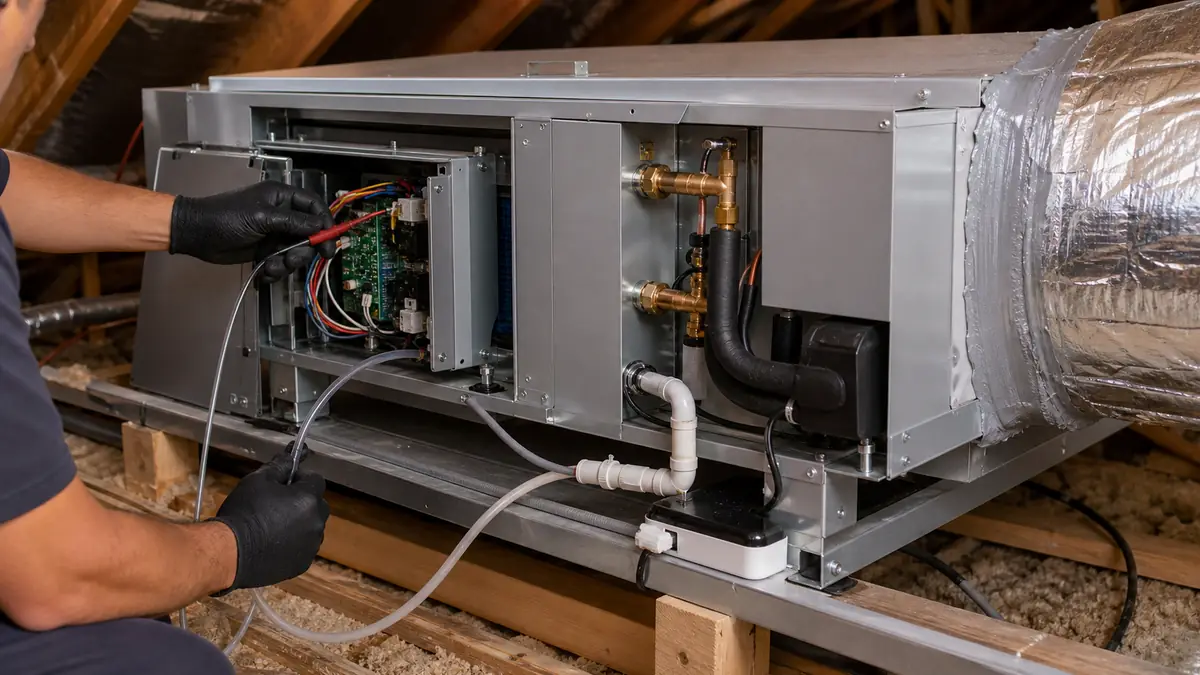

Ducted Mitsubishi air handlers solve a problem wall heads cannot: serving several rooms invisibly. In a South Hills estate that already has ductwork, an SVZ or MVZ multi-position air handler paired with a Mitsubishi inverter condenser gives whole-home comfort without a visible head in every room. In a tighter ranch home near Merlinda, a slim SEZ-KD hides above a hallway ceiling and feeds two or three bedrooms off one short run. Both keep the quiet, modulating inverter behavior Mitsubishi is known for while looking like a conventional central system.

Which Mitsubishi ducted models go in which West Covina home?

There are three ducted tiers, and the right one follows duct length and home size. The SEZ-KD low-static slim-duct unit (for example SEZ-KD12NA4) is the smallest - it hides in a closet or ceiling cavity and feeds short runs to two or three rooms, which suits a tight Galaxie or Merlinda ranch where there is no room for a big air handler. The SVZ-KP and MVZ multi-position air handlers (SVZ-KP24NA, MVZ-A24AA7) are the whole-home tier, mounting in any of four positions and replacing a central furnace-and-coil setup in a South Hills estate. For larger or light-commercial loads, the P-Series steps up: PEAD-AA slim-duct handlers (PEAD-AA24NL) and PVA multi-position units (PVA-A24AA7, PVA-A36AA7, PVA-A42AA7). All run on a Mitsubishi inverter outdoor unit - a MUZ, a PUZ, or an MXZ-SM in a mixed multi-zone - and the newest single-zone P-Series ducted systems use R-454B refrigerant while the M-Series stays R-410A. Capacity, available static pressure, and duct condition decide which tier fits.

What goes wrong with ducted air handlers?

The refrigerant-side faults match the rest of the M-Series, but ducted units add the airflow and blower layer. The table below pairs each symptom with the real Mitsubishi fault code and the components we check, then the West Covina cost lane.

Which components matter most on a ducted system?

The ECM blower motor is the part that makes a ducted Mitsubishi unit quiet and efficient, and it is also the part that, when it fails, gives you a call for cooling with no air moving. The condensate drain and pump take on more importance because a ducted air handler often sits in an attic or closet where a clogged drain causes hidden water damage before you notice. On the refrigerant side it is the usual cast: pipe thermistors, the LEV/EEV, and flare connections at the line set. We check static pressure on these systems because an air handler starved of airflow will throw a P6 and never reach setpoint on a 95 F West Covina afternoon.

What does a ducted retrofit involve in West Covina homes?

The retrofit hinges on what the home already has. A South Hills estate with sound, properly sized 1990s-2000s ductwork is the easy case: we test static pressure, confirm the duct can carry the air handler's rated airflow, and drop in an SVZ or MVZ on a Mitsubishi inverter condenser. The harder, more common West Covina case is a post-war ranch in Galaxie or Merlinda with undersized, leaky 1960s ducts in a hot attic - there, a full-size air handler starved of airflow will trip a P6 and never reach setpoint, so we either seal and resize the ducts ($1,900-$6,000) or fit a slim SEZ-KD on short runs instead. Title-24 in Climate Zone 9 typically requires HERS field verification on duct alterations and refrigerant-charge and airflow verification on the new system, which we plan into the job. Attic and closet placement also drives the condensate design, since a clogged drain in an attic causes hidden water damage.

Ducted air handler vs ductless wall heads - which is right?

This is the real tradeoff, not a marketing line. Ducted SVZ/MVZ gives you invisible, whole-home comfort with no head on the wall and a single thermostat-style control, which homeowners in finished South Hills estates usually prefer - but it costs more, depends entirely on good ductwork, and gives you one zone unless you add dampers. Ductless wall heads (MSZ) and floor consoles (MFZ-KJ) give true room-by-room zoning, install without any ductwork, and let you condition only the rooms in use, which is ideal for a no-duct Galaxie ranch - the cost is a visible head in each room and a separate control or kumo cloud adapter per zone. Slim SEZ-KD ducting splits the difference for two or three rooms. We size the decision to your ductwork, your floor plan, and how much wall hardware you can live with.

Is a ducted Mitsubishi system right for your home?

Use a quick test. If your home has existing ductwork in decent shape and you want central, invisible comfort, a ducted SVZ/MVZ is likely your system. If your ducts are old, leaky, and undersized and the budget will not cover resealing them, a slim SEZ-KD on short runs or ductless heads will perform better for the money. If you have no ducts at all and want zoning, go ductless. And if rooms differ wildly in load - a hot west-facing South Hills great room versus shaded bedrooms - the room-by-room control of ductless or a zoned ducted design beats a single-zone air handler. We will tell you which side you fall on at the survey rather than selling the bigger ticket by default.

Are these in-warranty or out?

If your ducted system was installed and registered through Mitsubishi Electric's channel recently, the compressor and parts may still be covered - take it to an authorized contractor first to keep that claim intact. Most ducted repair calls we get are out of warranty, where independent service is the better value. For controls that pair with these handlers, see kumo cloud and PAR controls; for the outdoor side, see Hyper-Heat heat pumps.

West Covina ducted system questions
